Used Equipments - EK 650
MODELS EK 650
|
YEAR 2004 |
MANUFACTURER Ellettari |
DESCRIPTION
Ref.: 25-222

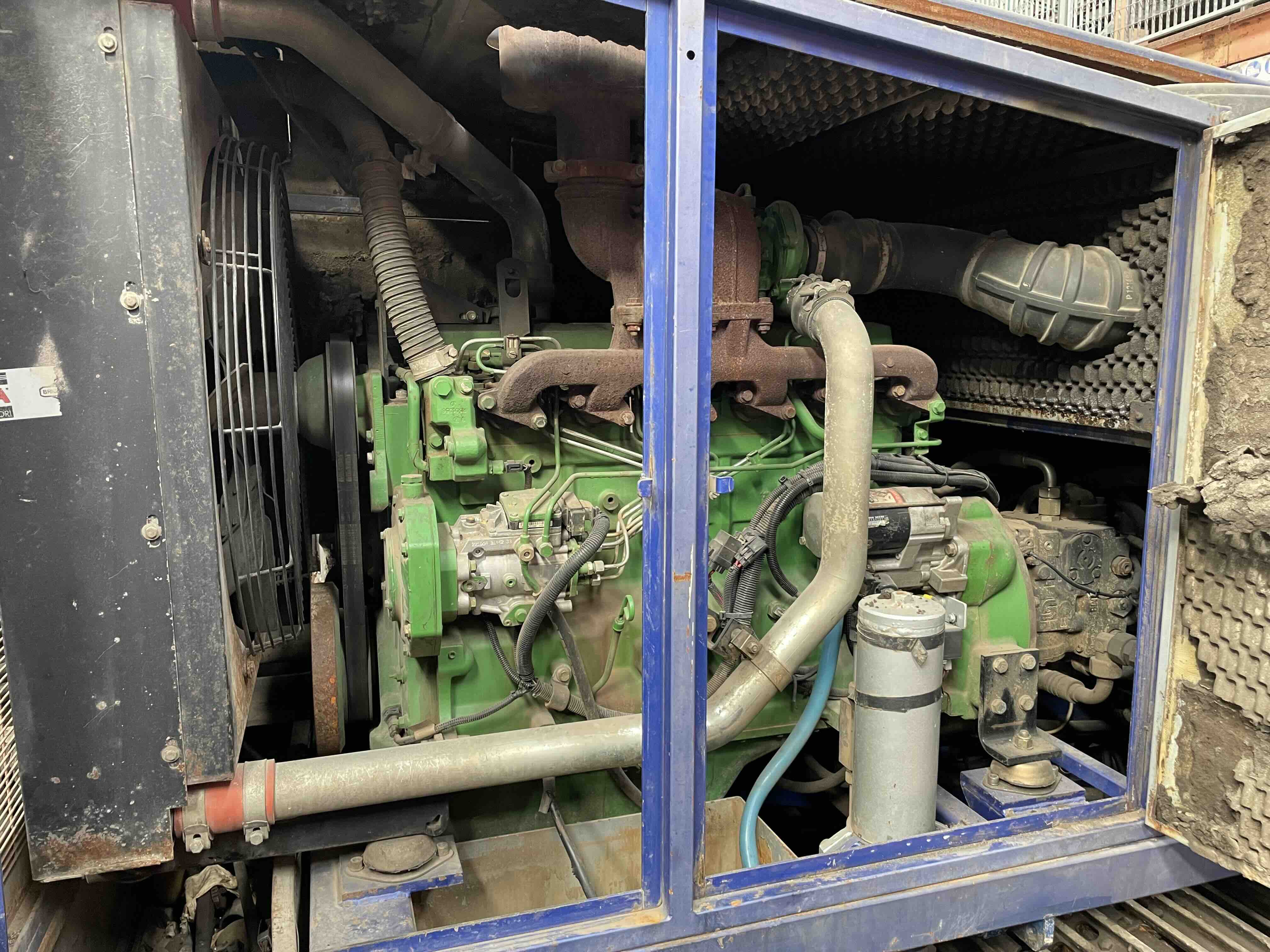

Diesel engine John Deere 6068HF275,
6 cylinders turbo , water cooled,
Power 175 hp at 2000 rpm,
Rotary head torque 1200 daNm
Drilling speed 100 - 400 rpm
Mast for 6.000 mm rods,
Pulling force 10 ton,
Double clamps dial. max 250 mm,
Hydraulic hole centerer,
Air Compressor ATLAS COPCO BT3,
Delivery 2500 lt/min, Max pressure 8,6 bar,
ELLETTARI Mud pump 800 lt/min, max pressure 30 bar
Service winch pulling force 2500 kg
